China has become the main producer and consumer of rubber additives. Rubber accelerator production capacity has been increasing rapidly, and the output has reached more than 70% of the global output. However, with the continuous improvement of environmental protection requirements, environmental protection problems have become the challenging problem.
From end of last year, we communicate with KEMAI continuously, China largest rubber Additives Company. After many times modification, we together developed the four step treatment process "distillation recovery + cooling settlement + acid base regulation + air flotation flocculation" was developed to recover organic compounds, with following applications:
Realized the recycling and reuse of organic compound;
- Industrial salt was recovered by concentration and crystallization;
- Combination process of two stage MVR evaporation and condensate advanced treatment has been developed;
- The effluent is guaranteed to be reused in the process of production;
- Discharge waste water up to standard

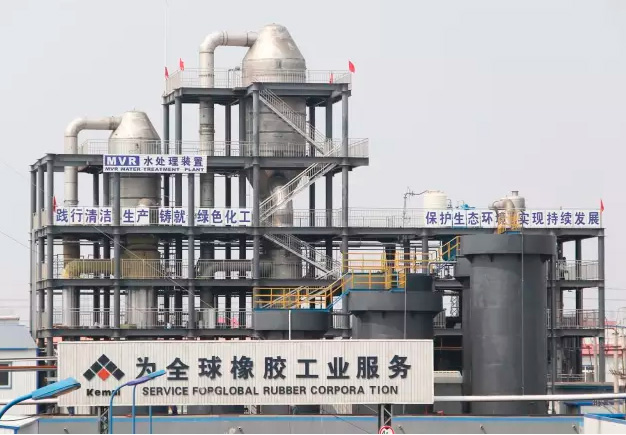

With the MVR Evaporator technology, the waste water treating system achieves the suitable separation and reuse of salt, organic compound and water: salt recovery rate 100%, organic compound recovery rate 98%, and water reuse rate 95%.
After some period test, KEMAI invite identification expert group from China chemical industry federation, to check the performance of the waste water treating system. The Expert surprised to see the super working performance and accept it to be mature and feasible process with similar level to international advanced technology. The expert also pointed out the advantages of MVR Evaporator compared with traditional multi effect evaporators.
- Multi effect evaporator needs continuously fresh steam from start to finish; However, MVR evaporator only needs fresh steam at starting stage, only need electricity during operation. Transfer smaller amount of power consumption to large amount of heat energy.
- Multi effect evaporator with longer residence time; However MVR evaporator with much shorter residence time, reduce the working time, improve the working efficiency.
- More effect evaporator need more invest; However, MVR evaporator only need extra budget for Centrifugal steam compressor with theoretic service life about 20years.
LH Evaporator is China leading brand for MVR evaporator Technology. If you need any support for multi effect evaporator, falling film evaporator, or thin film evaporator. Pls contact us freely. We have confidence to offer better evaporation solution.
